Drilling Bucket With Double Bottom And Double Opening In Soil Layer
Introduction
Suitable for soft to hard silt, clay and up to coarse gravel. Can excavate larger diameter holes.
Rotary drilling rig is used for drilling bit, coarse layer drilling, cylinder high strength manganese steel, bucket teeth.
Features
Double bottom and double opening cutting disc can excavate larger diameter holes. The manufacturing material is high strength manganese steel, and the cylinder body is divided into straight cylinder and cone barrel. The outer diameter of the drill is welded with high strength wear-resistant welding wire to prolong the service life. The opening and closing mechanism can be operated manually and mechanically. High frequency quenching of corner shaft and central shaft, wear resistance and long service life. There are a variety of specifications of centering point for selection, and various specifications of drill bit can be customized according to the parameters provided by customers.
Product parameters
| 1.Double bottom double open rock drill bucket(straight barrel) |
|
|
|
|
|
|
| Specification |
Barrel height(mm) |
Barrel thickness (mm) |
Thickness of bottom plate |
Cutting plate thickness |
Number of teeth |
weight(kg) |
| φ600 |
1200 |
16 |
40 |
50 |
2 |
747 |
| φ800 |
1200 |
16 |
40 |
50 |
4 |
995 |
| φ1000 |
1200 |
16 |
40 |
50 |
6 |
1180 |
| φ1200 |
1200 |
16 |
40 |
50 |
7 |
1535 |
| φ1500 |
1200 |
16 |
40 |
50 |
9 |
2027 |
| φ1800 |
1200 |
16 |
50 |
50 |
12 |
2795 |
| φ2000 |
800 |
20 |
50 |
50 |
12 |
3560 |
| φ2200 |
800 |
20 |
50 |
50 |
14 |
4360 |
| φ2500 |
800 |
20 |
40 Box type |
40 Box type |
16 |
5730 |
| Connect square head 200mm |
|
|
|
|
|
|
Used in
It is suitable for loose soil, sandy soil layer with high water content, soft to hard silt, clay, up to coarse gravel.
FAQ
Q: What is the product range of Jinyiyuan Machinery?
A: Jinyiyuan Machinery is mainly engaged in the manufacturing and sales of various drill bits and drill pipes, as well as the import and export business of various drilling tools.
Q: How about the after-sales service of Jinyiyuan Machinery?
A: Jinyiyuan Machinery provides quality service after sale. All our products have a warranty period.
Q: Can I visit the factory?
A: We warmly welcome customers to visit our factory at any time. In addition to visiting the factory, we also warmly welcome customers or third parties to arrange pre-delivery inspections.
Q: What is the delivery time?
A: Usually, the delivery time is about 3-7 working days. The specific delivery time will be provided in each quotation.
Product Tags:
|
|

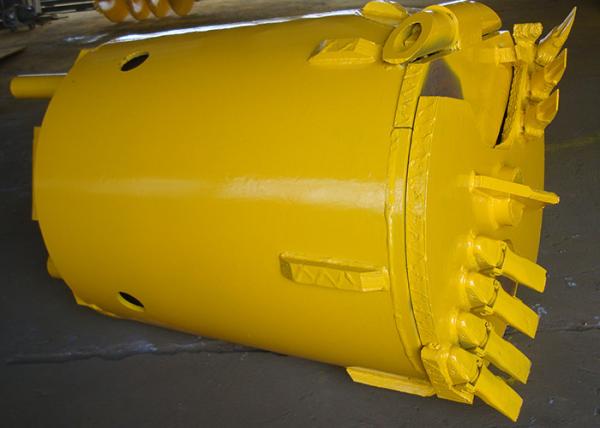

Double Opening 1200mm High 2pcs Teeth Rock Drilling Bucket Images
|
