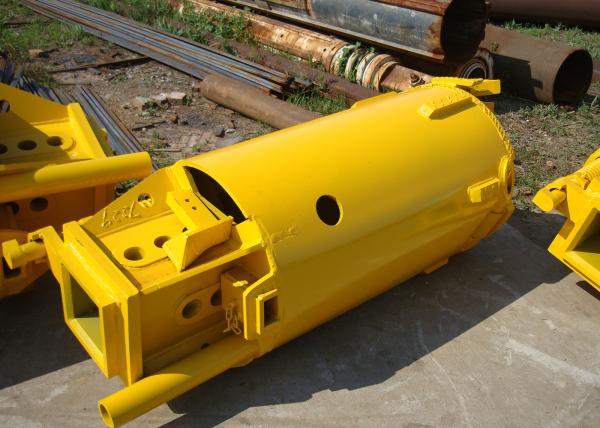

Double-Cut Rock Drilling Bucket/Foundation Drilling Bucket
Description:
1 - Two-petal soil drilling buckets are used to drilling soil,hard soil and argillite formation.
2 - The bucket can be designed in cylindrical type and conical type depend on bucket diameter,type of drill rig and formation to be drilled.
Product parameters
| Serial number |
Specification |
Bucket height (mm) |
Barrel thickness (mm) |
Thickness of bottom plate |
Cutting plate thickness |
Number of teeth |
Weight (kg) |
| 1 |
φ600 |
1200 |
16 |
40 |
50 |
11 |
870 |
| 2 |
φ800 |
1200 |
16 |
40 |
50 |
14 |
1151 |
| 3 |
φ1000 |
1200 |
16 |
40 |
50 |
20 |
1382 |
| 4 |
φ1200 |
1200 |
16 |
40 |
50 |
26 |
1778 |
| 5 |
φ1500 |
1200 |
16 |
40 |
50 |
28 |
2295 |
| 6 |
φ1800 |
1200 |
16 |
50 |
50 |
32 |
3042 |
| 7 |
φ2000 |
800 |
20 |
50 |
50 |
36 |
3850 |
| 8 |
φ2200 |
800 |
20 |
50 |
50 |
38 |
4670 |
| 9 |
φ2500 |
800 |
20 |
40 box type |
40 box type |
40 |
6060 |
|
Connection square head 200mm
|
Applicable:
Applicable layers: gravel , pebble , highly or medium weathered rock;
FAQ
1.What kind of drilling tools can we provide?
Ans.: We can provide drilling tools for almost all the brand rotary drilling rig, In addition to the above model specifications, our company can produce special specification products to customer requirements.
2.What is the advantages of our products?
Ans.:We use super quality raw material, which makes the drilling tools more durable and our drilling tools with competitive price.No matter you are dealers or end user,you will get the biggest profit.
3. What warranty do we provide?
Ans.: We provide 6 months warranty time.
4. What is the lead time?
Ans.: Usually the lead time is 7-10 days after receipt of your payment.
5.What payment terms do we accept?
Ans.: We accept T/T in advance or L/C at sight.
